This is a continuation from my previous article where we learned the basic of Selenium and how to program it in Python to perform UI automation testing.

Getting started on UI automation testing using Selenium with Python

Five Minimum Viable Interview Questions series — Updated 17 Feb 2023

Interviewer: ask them if your interview is running out of time. Interviewee: practice them if your preparation is running out of time.

Basics of BDD

Behavior Driven Development is a popular software development discipline. As its name suggests, BDD project is guided by definition and verification of behaviors. A common form of behavior can be expressed in the form of

given <some pre-requisites>

when <some actions happen>

then <some results to verify>

This form of expression is popular enough that people created a language called Gherkin to express and extend it. Gherkin organizes a software’s behaviors into one or more .feature files, each may contain one or more scenarios in the given…when…then form.

Example:

# Source: https://cucumber.io/docs/gherkin/reference/#example
Feature: Guess the word

  # The first example has two steps
  Scenario: Maker starts a game
    When the Maker starts a game
    Then the Maker waits for a Breaker to join

  # The second example has three steps
  Scenario: Breaker joins a game
    Given the Maker has started a game with the word "silky"
    When the Breaker joins the Maker's game
    Then the Breaker must guess a word with 5 characters

BDD in Software Development and Testing

Software development team uses BDD to describe software behaviors in simple, natural and consistent language. Its main functions are thus a documentation and communication tool across all disciplines and stakeholders such as end users, product managers, developers, testers.

Arguably, BDD is often considered a special form of Test Driven Development (TDD) and is most popular among software testers or developers who develop automation tests.

Implementing the Behavior in BDD

Each BDD expression has a corresponding implementation. Take the second scenario above for example:

When a scenario read Given the Maker has started a game with the word “silky”, there are setup codes executing to create a new gameboard with the specified word “silky”

@given('the Maker has started a game with the word "silky"')
def step_impl(context):
    context.game = Game("silky")

The implementation can be very elaborated or can be just as simple as doing nothing

@when(u'the Breaker joins the Maker\'s game')
def step_impl(context):
    pass

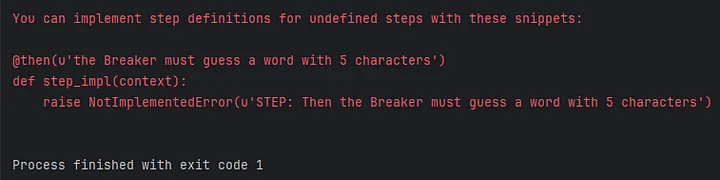

It’s an error if we miss an implementation. Suppose we forgot to implement the last expression Then the Breaker must guess a word with 5 characters , we will receive the following error:

BDD with Selenium in Python: Overview

Dependencies

In Python, we can use Behave to run BDD tests. It will pick up the .features file, their implementation and execute them accordingly.

pip install behave

We also need Selenium to launch and control Chrome

pip install selenium

Organization

We will organize our files in the following structure:

Root project folder
  |-- features
        |-- steps
        |    |-- a_feature_implementation.py
        |-- environment.py
        |-- a_feature.feature

• Keep all .feature files under a single folder named features
• Keep all implementation .py files under a subfolder named steps below features
• If multiple features or scenarios shared the same setup, we can keep the setup (and cleanup) codes inside an environment.py file directly under the features folder

Write Feature files and implement the steps

See the demo in the next section

Execute the test

See the demo in the next section

BDD with Selenium in Python: Demo

We will demonstrate how to describe and implement the 2 tests in the previous article in BDD style.

Quick Recap

• The 2 test cases are implemented in 2 function test_tc1_get_python_org_title(self) and test_tc2_search_getting_started(self) respectively.
• We use Selenium’s Chrome web driver to control the Chrome browser, inspect its content and simulate user actions. We define setUp(self) and tearDown(self) functions to handle the setting up and cleaning up of test’s fixture i.e. the Chrome web driver.
• We use Python’s unittest library to run and assert desired results

import unittest
from selenium import webdriver
from selenium.webdriver.common.by import By

class TestPythonOrg(unittest.TestCase):
    def setUp(self):
        self.driver = webdriver.Chrome()

    def tearDown(self):
        self.driver.quit()

    def test_tc1_get_python_org_title(self):
        driver = self.driver
        driver.get("https://www.python.org")

        print(driver.title)
        self.assertEqual("Welcome to Python.org", driver.title)


    def test_tc2_search_getting_started(self):
        driver = self.driver

        driver.get("https://www.python.org")

        search_input_field = driver.find_element(By.ID, "id-search-field")
        search_input_field.clear()
        search_input_field.send_keys("getting started in Python")

        search_go_button = driver.find_element(By.ID, "submit")
        search_go_button.click()

        print("current url: " + driver.current_url)
        self.assertEqual("https://www.python.org/search/?q=getting+started+in+Python&submit=", driver.current_url)

        results = driver.find_elements(By.CSS_SELECTOR, ".list-recent-events li")
        print(f"number of results: {len(results)}")
        self.assertGreater(len(results), 0)

if __name__ == '__main__':
    unittest.main()

BDD Scenarios

We can express the previous test cases as the following 2 scenarios. We place them under a single feature here but you can have them in separate .feature files.

# file: lauch_python_org.feature

Feature: Launch and Search Python.org

    Scenario: Launch Python.org
      Given we have selenium installed
       When we launch https://www.python.org in chrome
       Then we obtain title "Welcome to Python.org"

    Scenario: Search Getting started in Python
      Given we have selenium installed
       When we launch https://www.python.org in chrome
        And we search "getting started in Python"
       Then we arrive at search page
        And we obtain some result

In both scenario:

• We make an explicit assumption that we have Selenium installed → the Given
• Then we open https://www.python.org in Chrome → the When. Scenario 2 perform an extra action (search “getting started in Python”) → the And following a When
• Each scenario performs their own validation of the obtained result → the Then. Scenario 1 validate that the page’s title is “Welcome to Python.org” while Scenario 2 asserts two conditions: that the browser arrived at the search page, and that it contains some search results → the Then and the And following that Then

We can observe that And has flexible meanings depending on where it is used. It takes after the keyword it follows:

• Following a Given, it specifies an additional pre-requisite
• Following a When, it specifies an additional action
• Following a Then, it specifies an additional assertion

Implementing the behaviors

Since our 2 test scenarios requires the use of Selenium to launch and control Chrome browser — so-called test’s fixture, we’ll create an environment.py to set that up.

• The selenium_browser_chrome(context) is responsible for setting Selenium’s Chrome webdriver and save its reference to the the context.browser attribute. It returns that attribute and yield the execution to Behave’s runtime to execute all the tests. When all tests finish, it gains back control and shutdown the Chrome browser by calling the .quit() method
• The before_all(context) method runs once at the beginning. It tells Behave to call selenium_browser_chrome method to setup the fixture.

# file: features/environment.py
from behave import fixture, use_fixture
from selenium import webdriver

@fixture
def selenium_browser_chrome(context):
    context.browser = webdriver.Chrome()
    yield context.browser
    context.browser.quit()

def before_all(context):
    use_fixture(selenium_browser_chrome, context)

We implement the remaining behaviors as below:

• We create a file features/steps/lauch_python_org.py to contain our implementation
• We import necessary codes from Behave and Selenium at the start of the file
• For the Given, the environment.py already setup Selenium for us. We can just pass it, or we can explicitly assert that calling assert hasattr(context, ‘browser’)
• We obtain the Chrome webdriver by the context.browser expression
• Using the Chrome webdriver, we open https://www.python.org, examine its title, search “Getting started in Python”… just like we did in the previous article.

# file: features/steps/lauch_python_org.py

from behave import *
from selenium.webdriver.common.by import By

@given('we have selenium installed')
def step_impl(context):
    assert hasattr(context, 'browser')

@when('we launch https://www.python.org in chrome')
def step_impl(context):
    context.browser.get("https://www.python.org")

@then('we obtain title "Welcome to Python.org"')
def step_impl(context):
    assert context.browser.title == "Welcome to Python.org"

@when('we search "getting started in Python"')
def step_impl(contex):
    browser = contex.browser
    search_input_field = browser.find_element(By.ID, "id-search-field")
    search_input_field.clear()
    search_input_field.send_keys("getting started in Python")

    search_go_button = browser.find_element(By.ID, "submit")
    search_go_button.click()

@then('we arrive at search page')
def step_impl(context):
    assert context.browser.current_url == "https://www.python.org/search/?q=getting+started+in+Python&submit="

@then('we obtain some result')
def step_impl(context):
    results = context.browser.find_elements(By.CSS_SELECTOR, ".list-recent-events li")
    assert  len(results) > 0

Execute the test

Depending on how you setup your project, it can be as simple as typing behave into the terminal prompt (in PyCharm virtual environment setup), or as complicated as locating where behave is installed in order to execute it.

If you have run pip install behave previously, you can also type python -m behave to execute the test

PS ...\bdd-getting-started> behave
DevTools listening on ws://127.0.0.1:59978/devtools/browser/9ab3805c-031d-45cc-bd58-b601e1979e50
Feature: Launch and Search Python.org # features/lauch_python_org.feature:1
  Scenario: Launch Python.org                       # features/lauch_python_org.feature:3
    Given we have selenium installed                # features/steps/launch_python_org.py:5
    When we launch https://www.python.org in chrome # features/steps/launch_python_org.py:8
    Then we obtain title "Welcome to Python.org"    # features/steps/launch_python_org.py:12
  Scenario: Search Getting started in Python        # features/lauch_python_org.feature:8
    Given we have selenium installed                # features/steps/launch_python_org.py:5
    When we launch https://www.python.org in chrome # features/steps/launch_python_org.py:8
    And we search "getting started in Python"       # features/steps/launch_python_org.py:16
    Then we arrive at search page                   # features/steps/launch_python_org.py:26
    And we obtain some result                       # features/steps/launch_python_org.py:30
1 feature passed, 0 failed, 0 skipped
2 scenarios passed, 0 failed, 0 skipped
8 steps passed, 0 failed, 0 skipped, 0 undefined
Took 0m1.844s

Conclusion

We have briefly learn what Behavior-Driven development is, how a software development team uses it, and how we can do so with Behave, Selenium in Python.

For the demo, we converted our previous project, which contains 2 simple Selenium-based UI automation tests, into 2 BDD scenarios. You can get the sample codes from the GitHub link below

GitHub - geraldnguyen/bdd-getting-started: Behavior Driven Development (BDD) with Selenium in…
